Industrial Hydraulic Oil Filter 0240R005BN3HC Oil Filter

0 sold

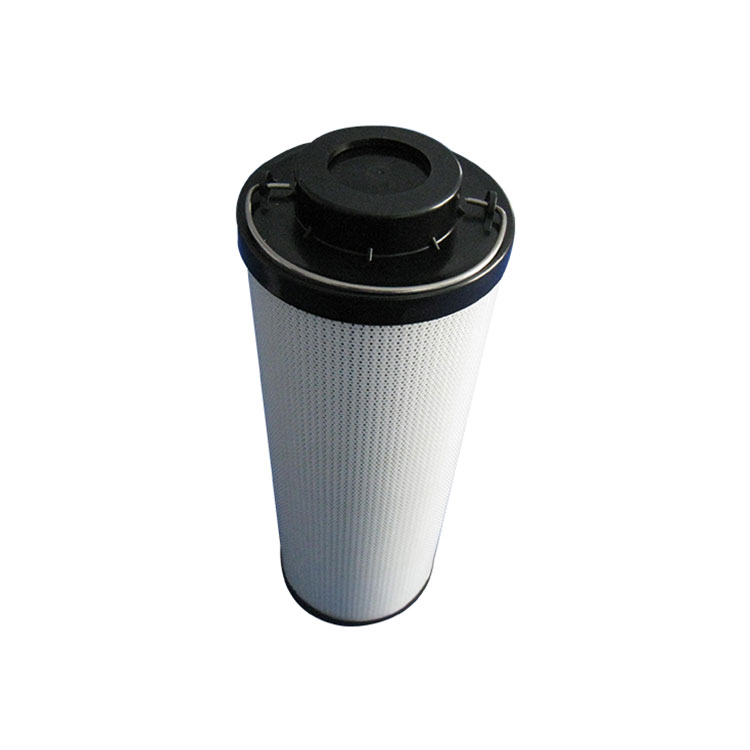

The oil Filter Element is mainly used to filter the oil in the hydraulic system, and is installed in the filter and the oil filter in the hydraulic system.

In the oil circuit of the hydraulic system, it is used to remove the worn metal powder and other mechanical impurities of the various parts of the hydraulic system, keep the oil circuit clean, and prolong the service life of the hydraulic system. The low-pressure tandem filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can be automatically opened to ensure the normal operation of the system.

Product Introduction

ISO 2941 filter element anti-extrusion and anti-rupture test

ISO 2942 Hydraulic Filter Element structural integrity test

ISO 2943 Hydraulic filter element material and liquid compatibility test

ISO 3723 filter end load detection

ISO 3724 Elements for determination of flow fatigue characteristics of filters

Evaluation of the relationship between ISO 3968 filter pressure difference and flow characteristics

ISO 4572 multi-channel to determine filter characteristics

Technical Parameters

model	0240R005BN3HC
Types of	Hydraulic oil filter element
size	Standard, customizable
Operating temperature	-25℃–110℃
work pressure	21bar ~ 210bar
Material	Fiberglass, high-quality stainless steel
Working medium	Mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, etc.
Filtration accuracy	1μm-100μm
Life	3500h-4000h
Advantage	1. Easy to remove pollutants 2. Large flow area 3. Small pressure loss 4. Simple structure 5. Light weight 6. Uniform filter material
pack	In PP bag, carton, wooden box or according to your requirements
Mailing method	Sea, air, express
