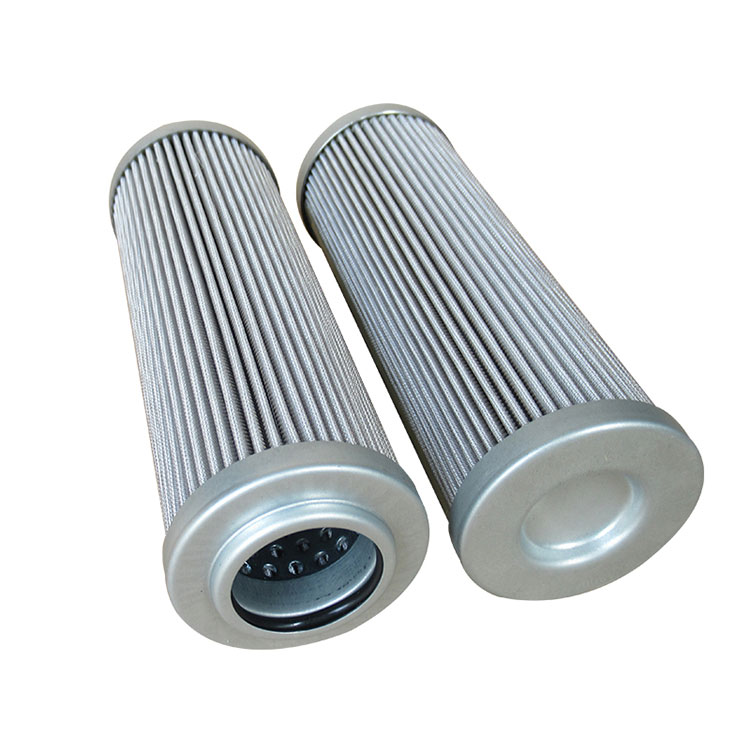

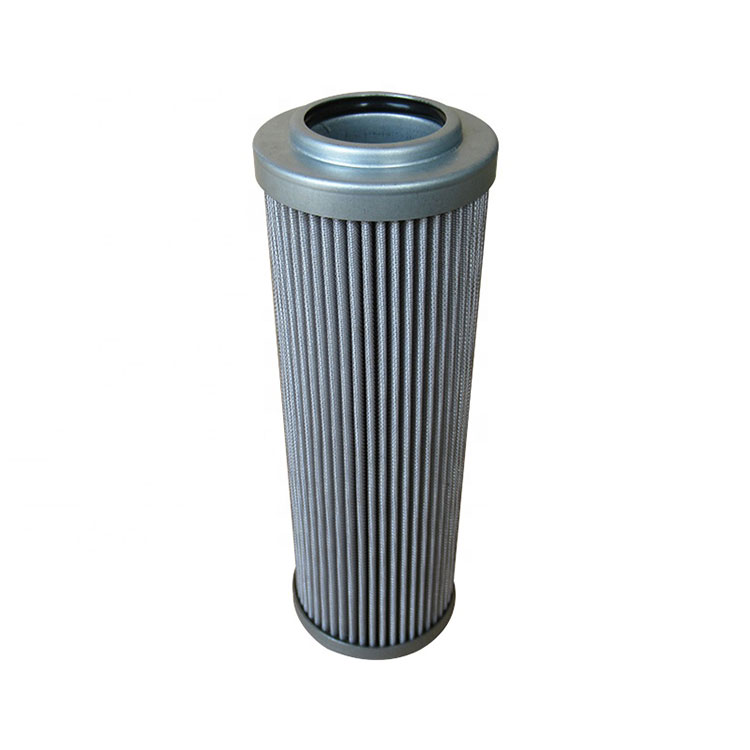

300148 10 Micron Hydraulic Oil Filter

0 sold

HUAYUANFILTER 300148 hydraulic oil Filter Element adopts deep-type filter material, tapered hole structure, and gradient filtration, which can intercept particles to the greatest extent and prolong its service life. We use high-tech support materials, which can not only support the filter material, avoid compression and deformation, but also protect the material from damage during processing. We also used a special spiral wound belt to make the filter layer firmly connected. The fixed folding distance ensures that the fluid flows evenly when penetrating the filter layer. Not only improves the pressure drop, but also extends the service life.

Product Introduction

In hydraulic and lubricating systems, this kind of filter can be used to filter solid particles, colloidal substances and other pollutants in the working medium. In addition, they can effectively control the pollution degree of the working medium and ensure the normal operation of the system.

Our products pass the following tests

ISO 2941 collapse and explosion resistance

ISO 2942 Compatibility of materials and fluids

ISO 2943 Compatibility of materials and fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 pressure drop and flow rate

ISO 16889 multi-channel performance test

Technical Parameters

model	300148
Types of	Hydraulic oil filter element
size	Standard, customizable
Operating temperature	-25℃–110℃
work pressure	21bar ~ 210bar
Material	Fiberglass, high-quality stainless steel
Working medium	Mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, etc.
Filtration accuracy	1μm-100μm
Life	3500h-4000h
Advantage	1. Easy to remove pollutants 2. Large flow area 3. Small pressure loss 4. Simple structure 5. Light weight 6. Uniform filter material
pack	In PP bag, carton, wooden box or according to your requirements
Mailing method	Sea, air, express
